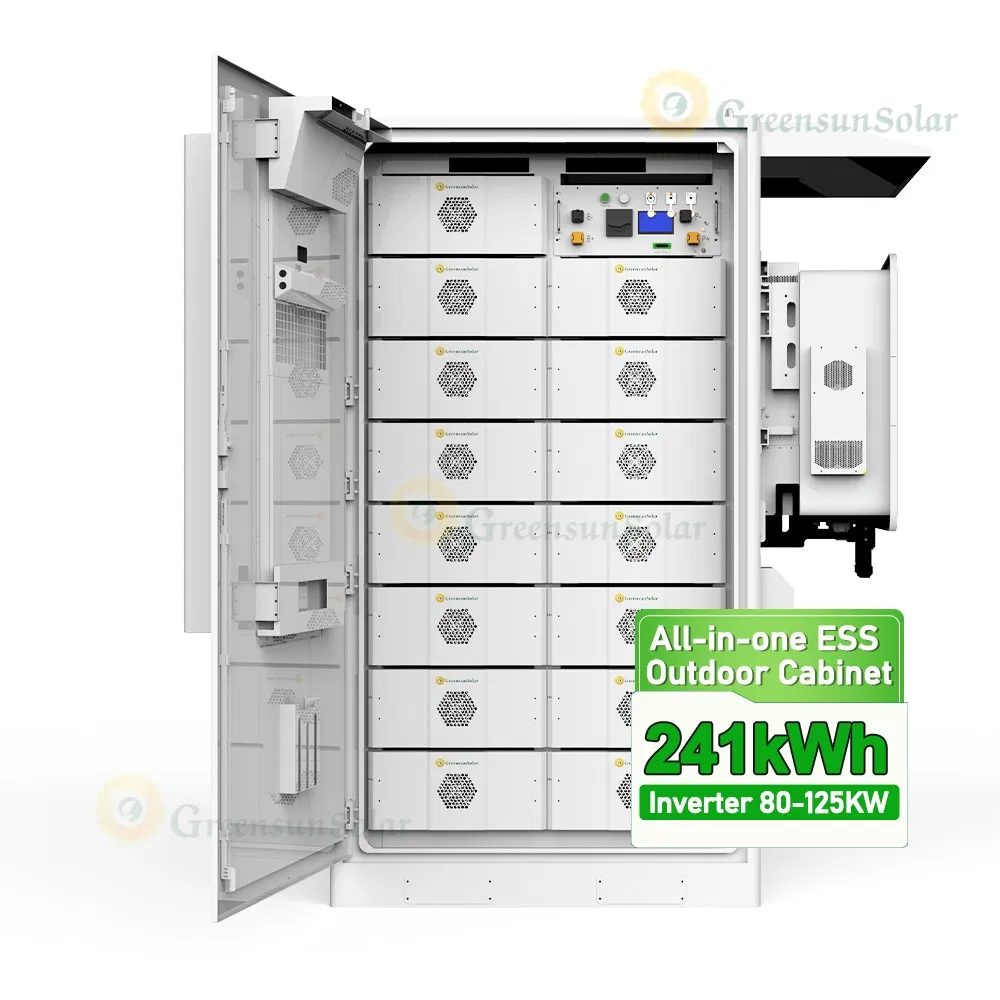

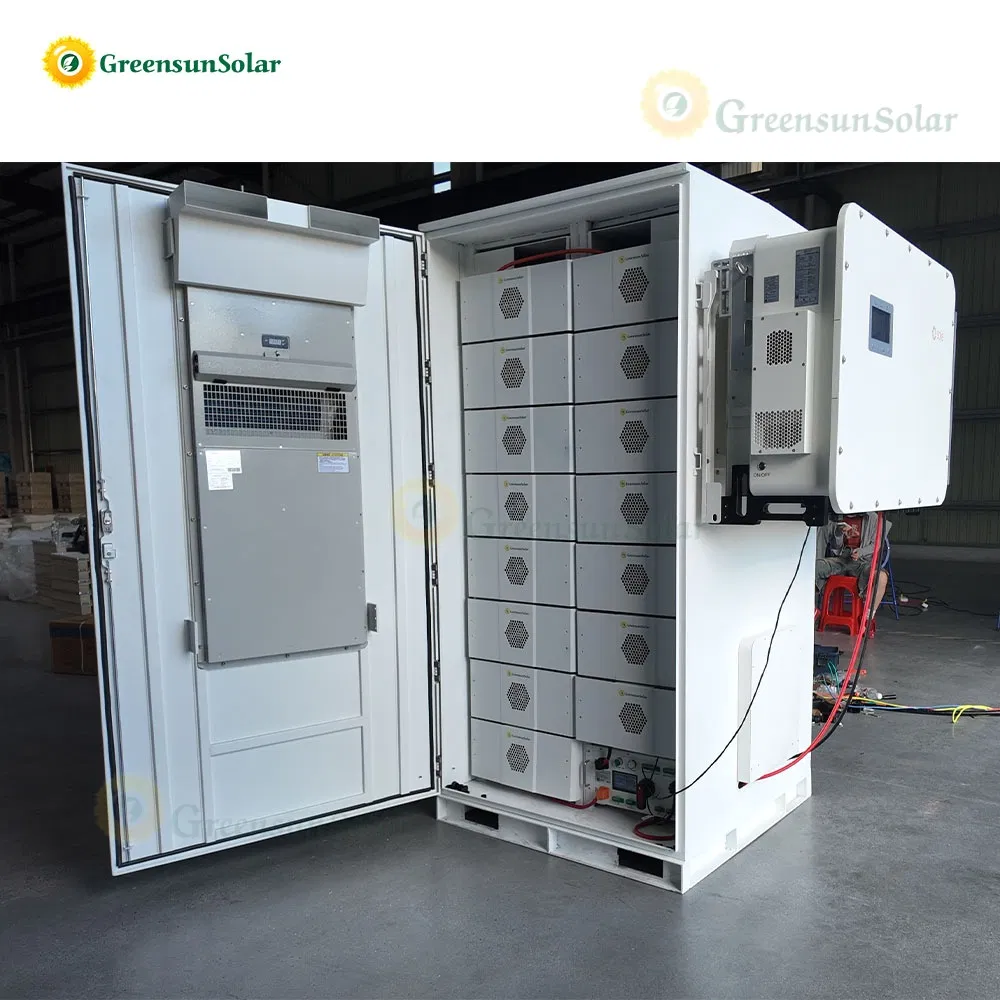

Greensunip55 Container 100kw 240kwh Ess Battery for Hybrid Solar Energy Storage System
Greensunip55 Container 100kw 240kwh Ess Battery for Hybrid Solar Energy Storage System
Greensunip55 Container 100kw 240kwh Ess Battery for Hybrid Solar Energy Storage System
Greensunip55 Container 100kw 240kwh Ess Battery for Hybrid Solar Energy Storage System
Greensunip55 Container 100kw 240kwh Ess Battery for Hybrid Solar Energy Storage System
1 / 5
Greensunip55 Container 100kw 240kwh Ess Battery for Hybrid Solar Energy Storage System
Greensunip55 Container 100kw 240kwh Ess Battery for Hybrid Solar Energy Storage System
Greensunip55 Container 100kw 240kwh Ess Battery for Hybrid Solar Energy Storage System
Greensunip55 Container 100kw 240kwh Ess Battery for Hybrid Solar Energy Storage System
Greensunip55 Container 100kw 240kwh Ess Battery for Hybrid Solar Energy Storage System

Greensunip55 Container 100kw 240kwh Ess Battery for Hybrid Solar Energy Storage System

Customization: Available
Container Size: 1150*1350*2420mm
Weight: 3000kg
Send Inquiry

Product Description

Basic Information Overview
Model NO.GCB-E240
Nominal Voltage768V
Nominal Capacity241kWh
Warranty10 Years
Cycle Life6000 Cycles
AC Power80kw / 100kw / 125kw
ProtectionIP65
Parallel Capacity2~6 Units
Product Description

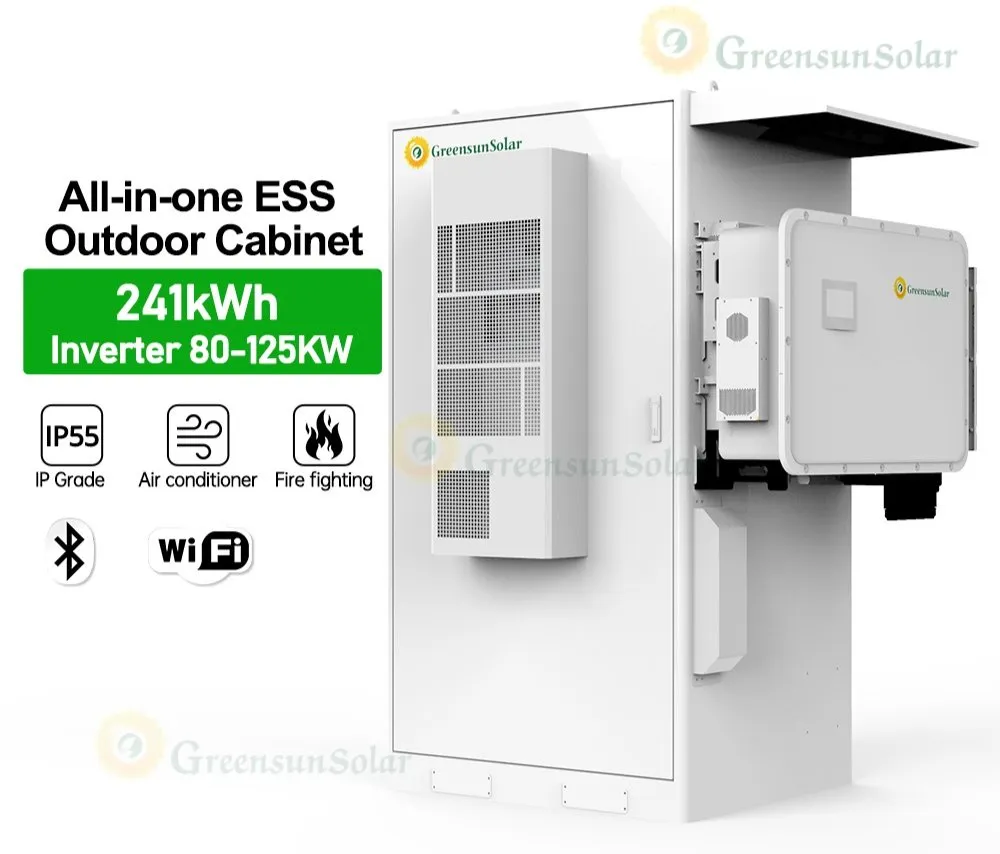

Container Energy Storage System

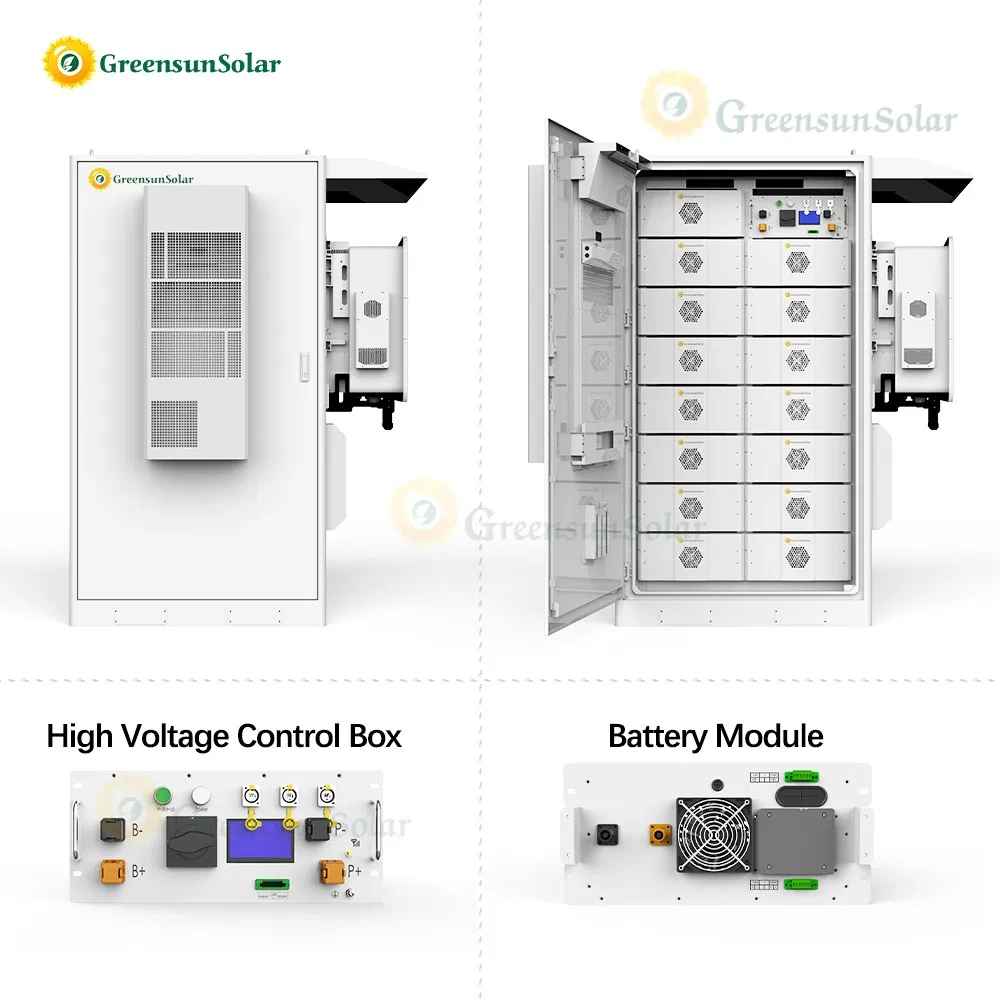

ESS Battery Detail 1

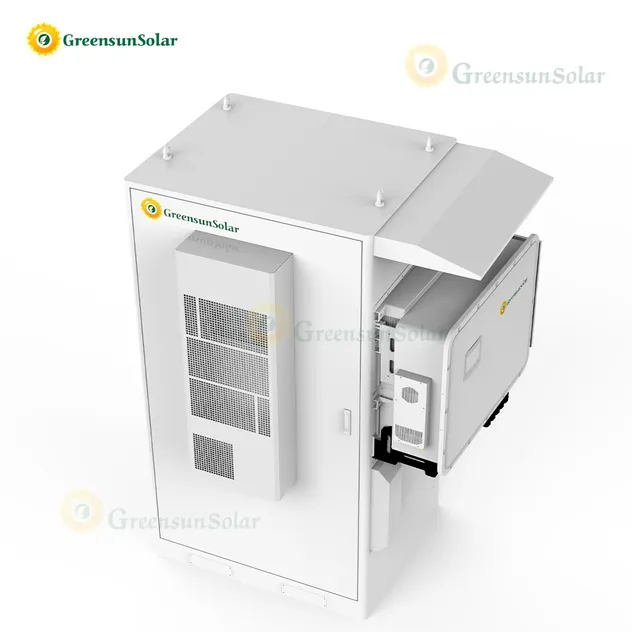

ESS Battery Detail 2

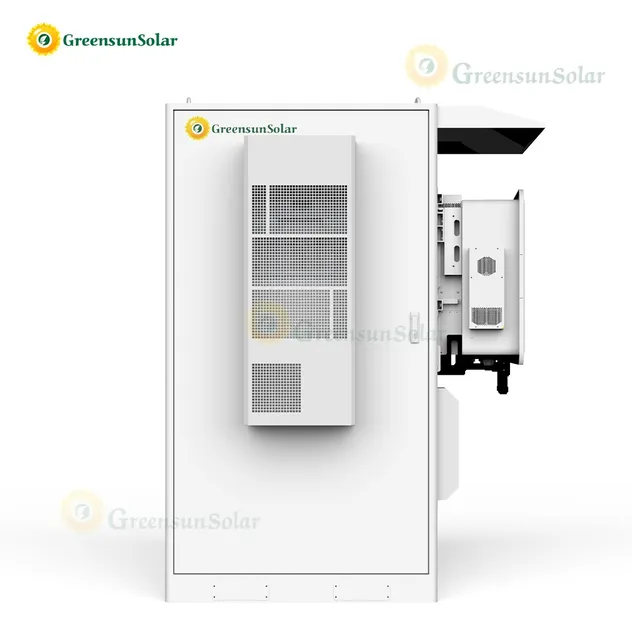

ESS Battery Detail 3

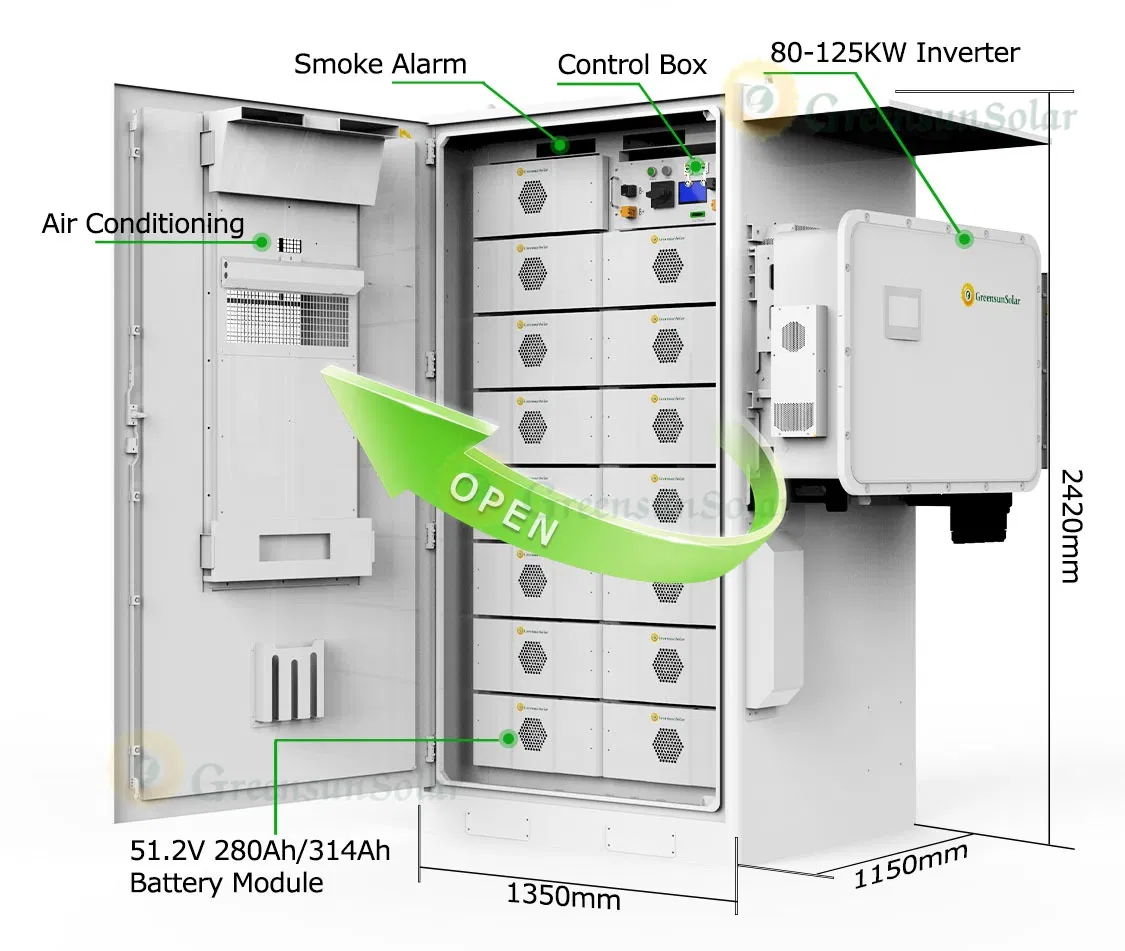

Energy Storage System Interior
System Technical Layout
Technical Data Sheet
Parameter Item Specification Details (GCB-E240)
Main Battery Parameters
Cell ChemistryLiFePO4
Module Energy (kWh)16.076 kWh
Module Nominal Voltage (V)51.2 V
Module Capacity (Ah)314 Ah
System Nominal Voltage (V)768 V
System Total Energy 241.15 kWh
System Usable Energy (90% DOD)217.03 kWh
Charge/Discharge Current157A
Operation & Environment
Thermal ManagementSmart fan cooling
LCD DisplaySOC / Voltage / Temp / Time / Fault Code
Working TemperatureCharge: 0~55°C / Discharge: -20~55°C
Communication PortCAN / RS485 / Ethernet
IP RatingIP55 / IP65
Dimension (W*D*H)1150 * 1350 * 2420 mm
Weight Approximate3000 kg
Cycle Life≥6000 Cycles (0.5C, 25°C)
CertificationsCE / UN38.3 / MSDS / EMC
Project Cases & Relevant Components

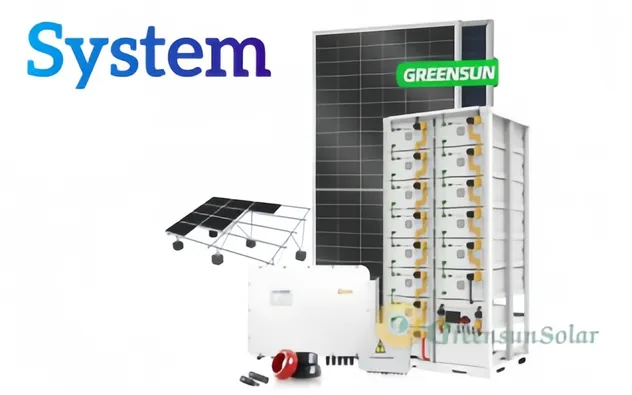

Solar System Case 1

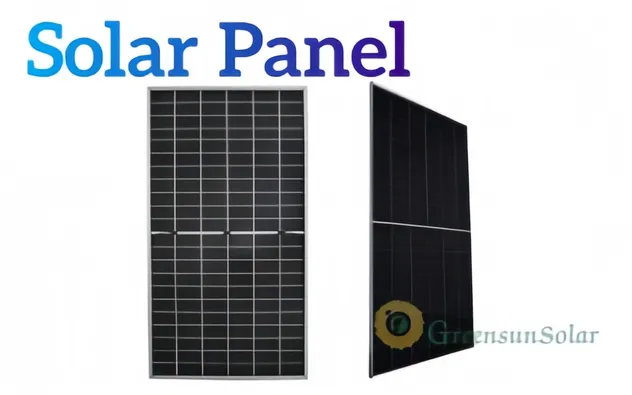

Solar Panel Components

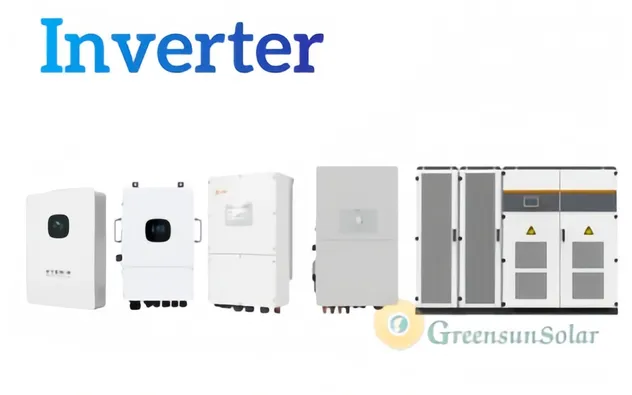

Inverter Systems

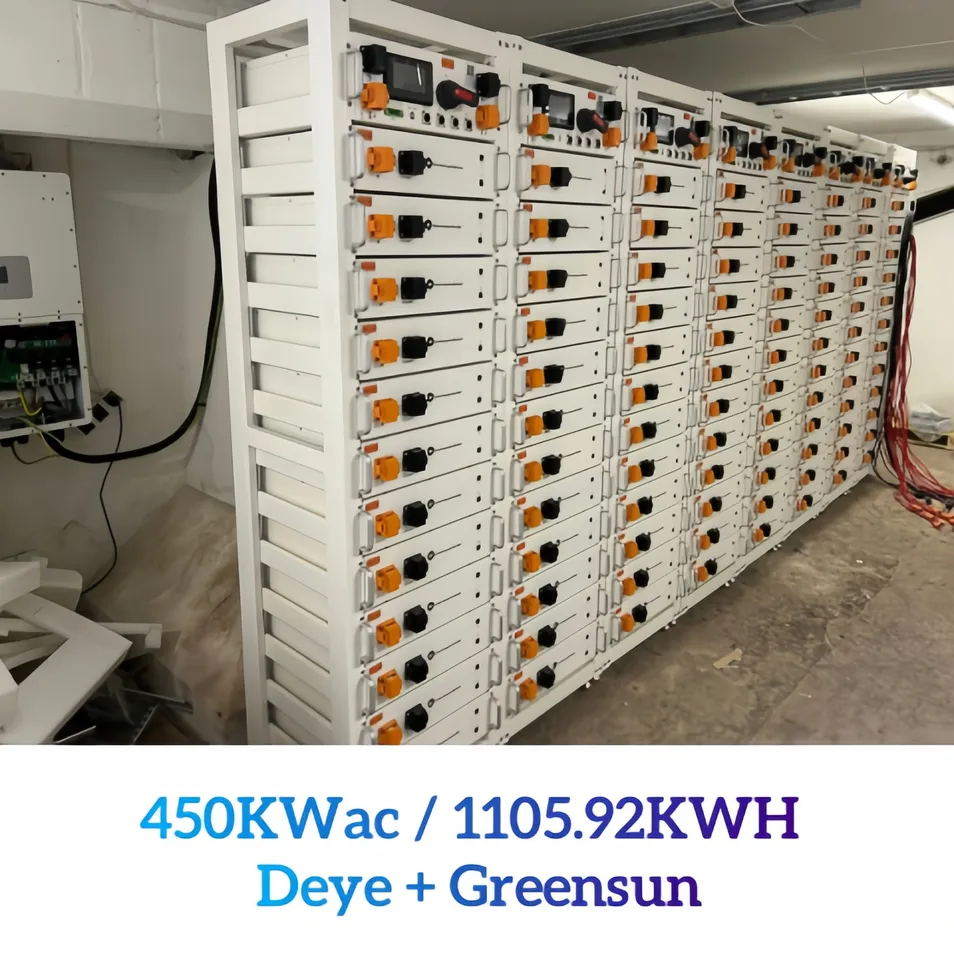

Installation Case A

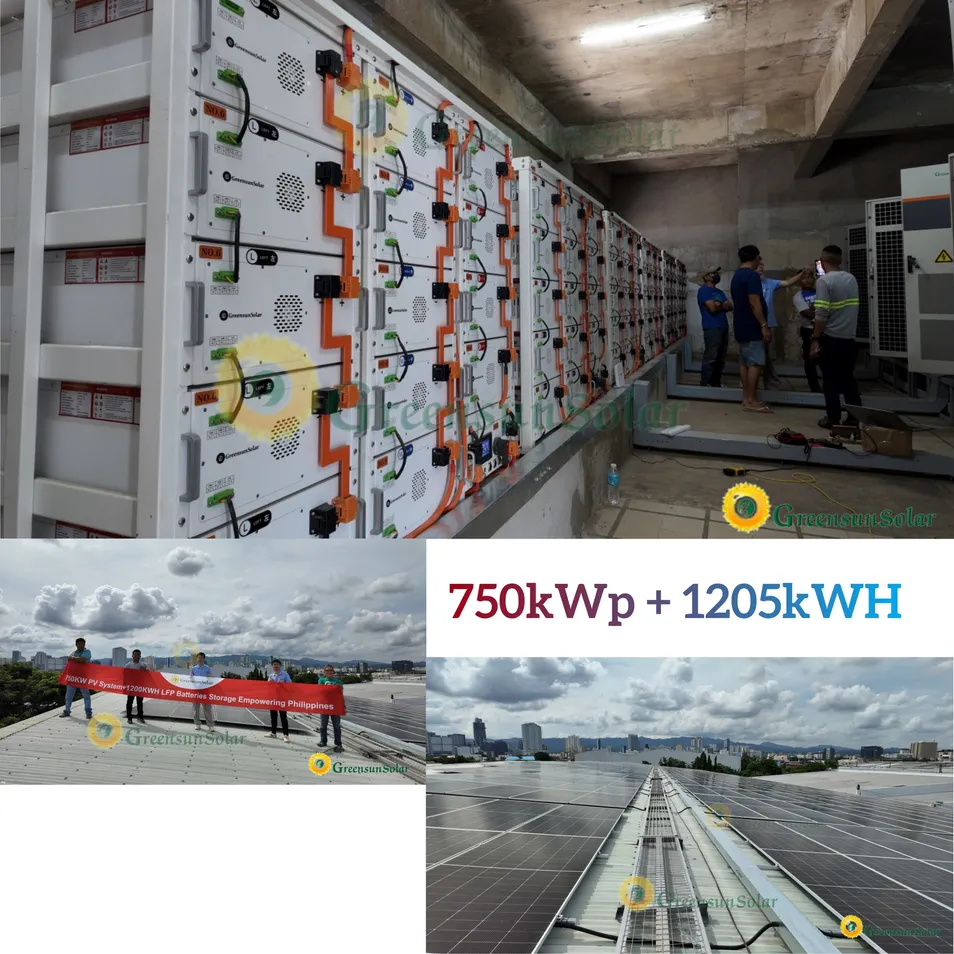

Installation Case B

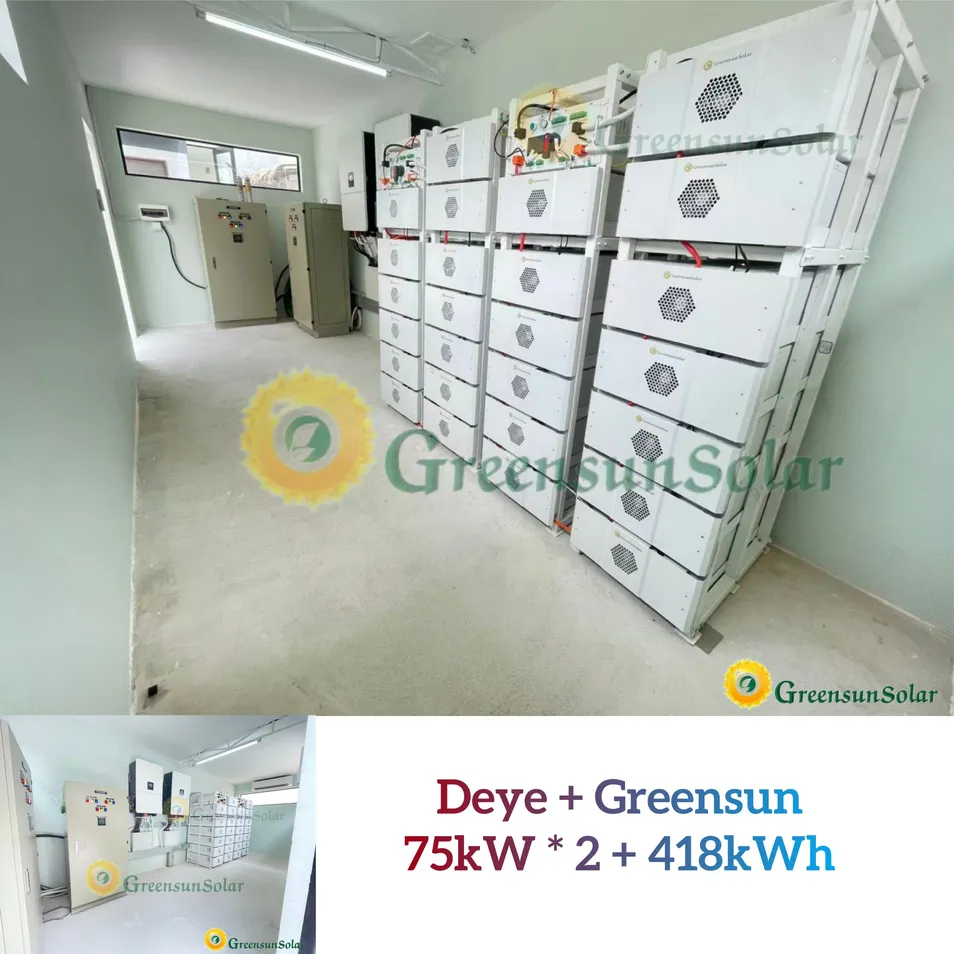

High Voltage Battery Project

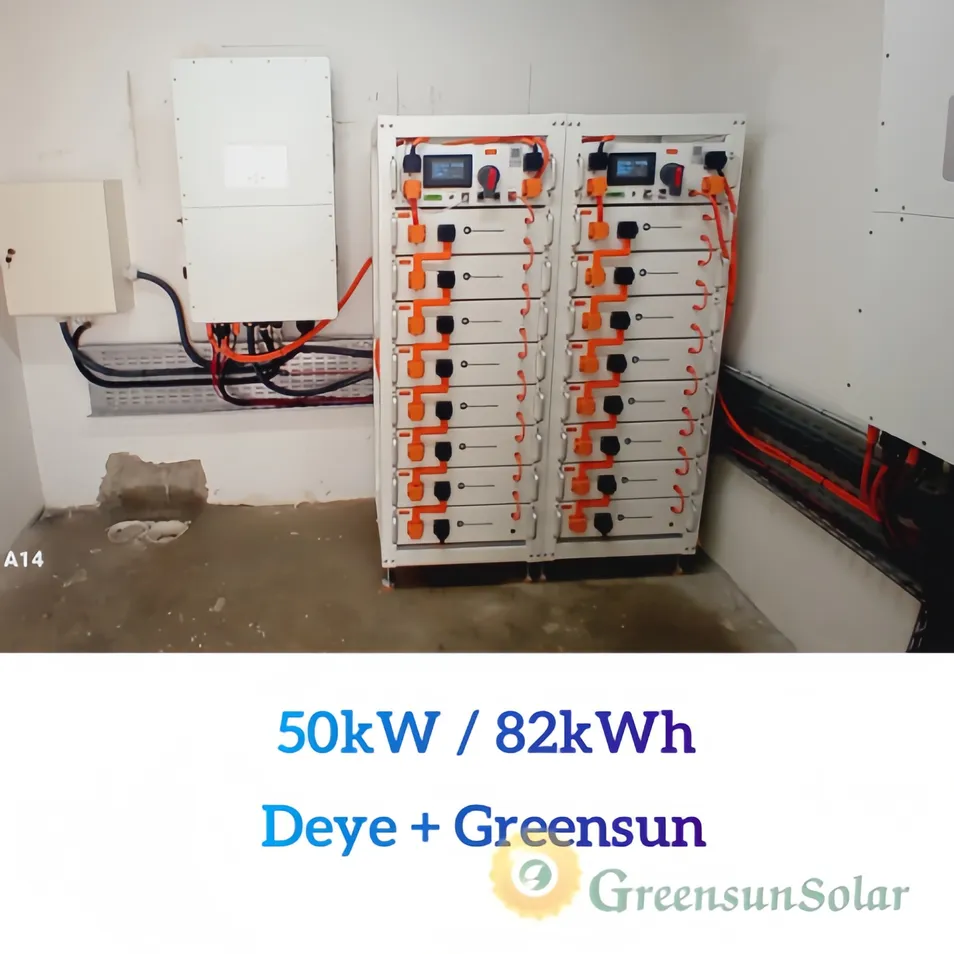

Outdoor ESS Installation
Packaging & Shipping

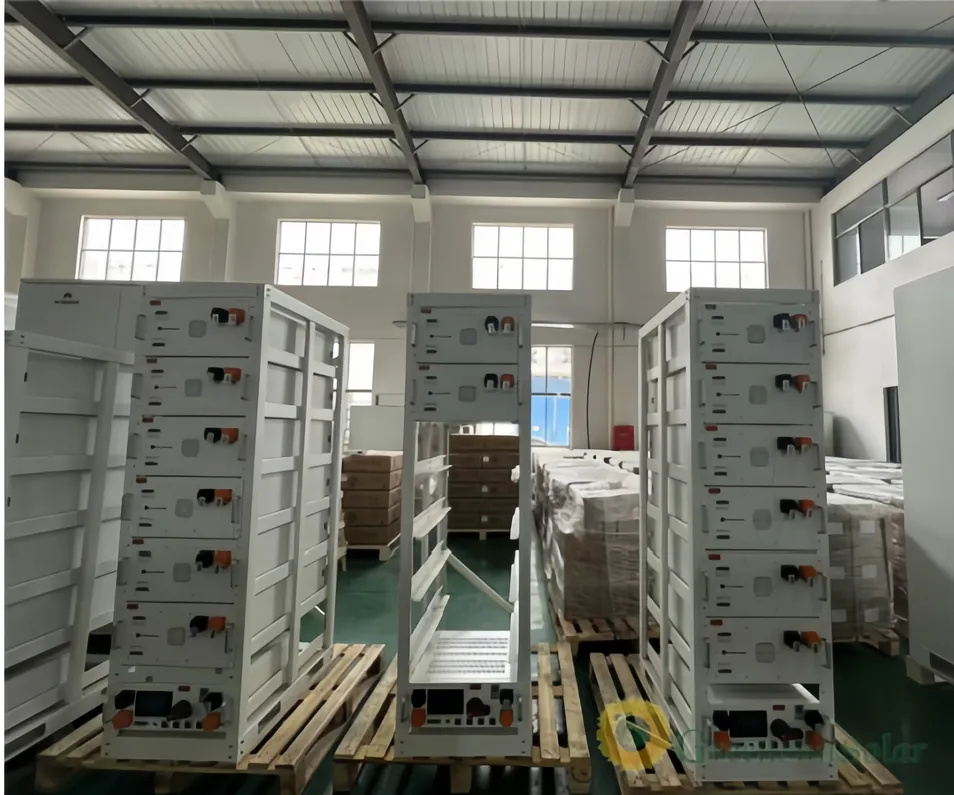

Wooden Box Packaging 1

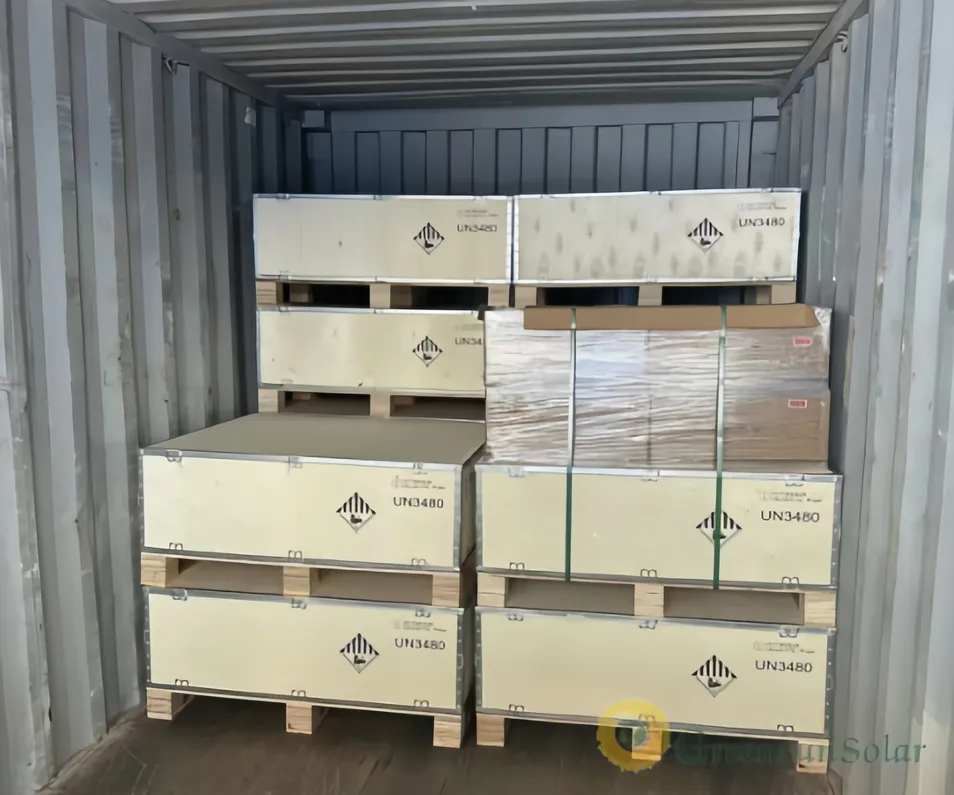

Wooden Box Packaging 2
Manufacturing & Solutions
The manufacturer and exporter is dedicated to providing professional Battery Energy Storage Solutions (BESS) across the world. Customer Satisfaction and Product Quality have always been the basic principles since establishment.
The factory maintains in-depth cooperation with first-tier brand inverters and provides complete solutions by integrating the supply chain, ensuring unparalleled advantages in the energy storage market.
Factory Production Line
Frequently Asked Questions
What is the total capacity of the GCB-E240 system?
The system provides a total energy capacity of 241.15 kWh, with a usable energy of approximately 217.03 kWh based on a 90% Depth of Discharge (DOD).
How long is the expected lifespan of the battery?
The system is designed for high durability, offering over 6000 cycles at 0.5C discharge rate and 25°C temperature conditions.
What is the warranty period for this BESS?
This energy storage system comes with a comprehensive 10-year warranty, ensuring long-term reliability and support.
Is the system suitable for outdoor installation?
Yes, the enclosure is rated at IP55/IP65, providing excellent protection against dust and water, making it suitable for floor-mounted outdoor installations.
Can multiple units be connected in parallel?
The system supports parallel configuration, allowing for 2 to 6 units to be connected together to scale energy storage capacity.
What communication protocols does the system support?
The GCB-E240 supports multiple communication interfaces including CAN, RS485-115200, and Ethernet. Optional Wi-Fi and Cellular connectivity are also available.
