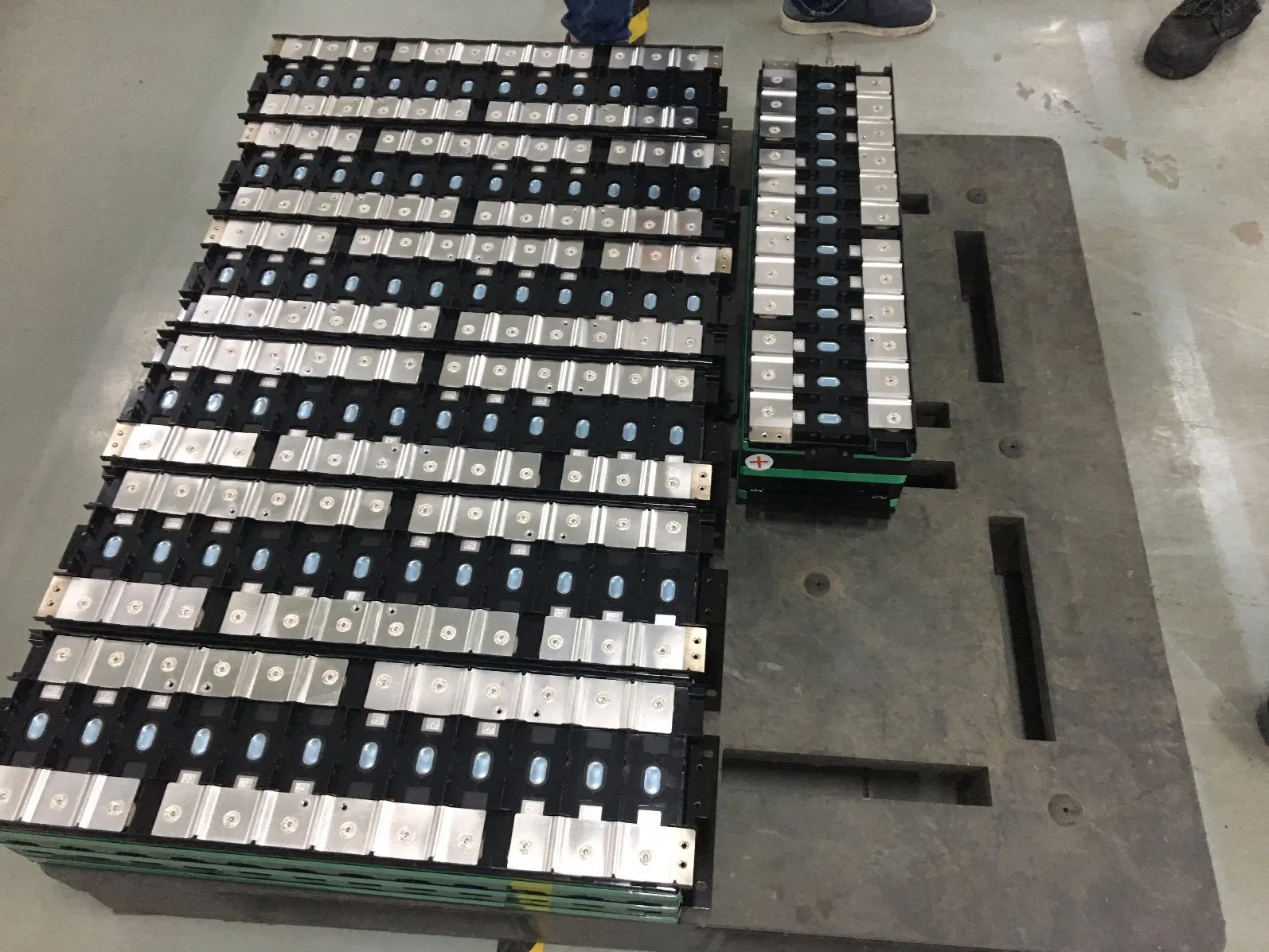

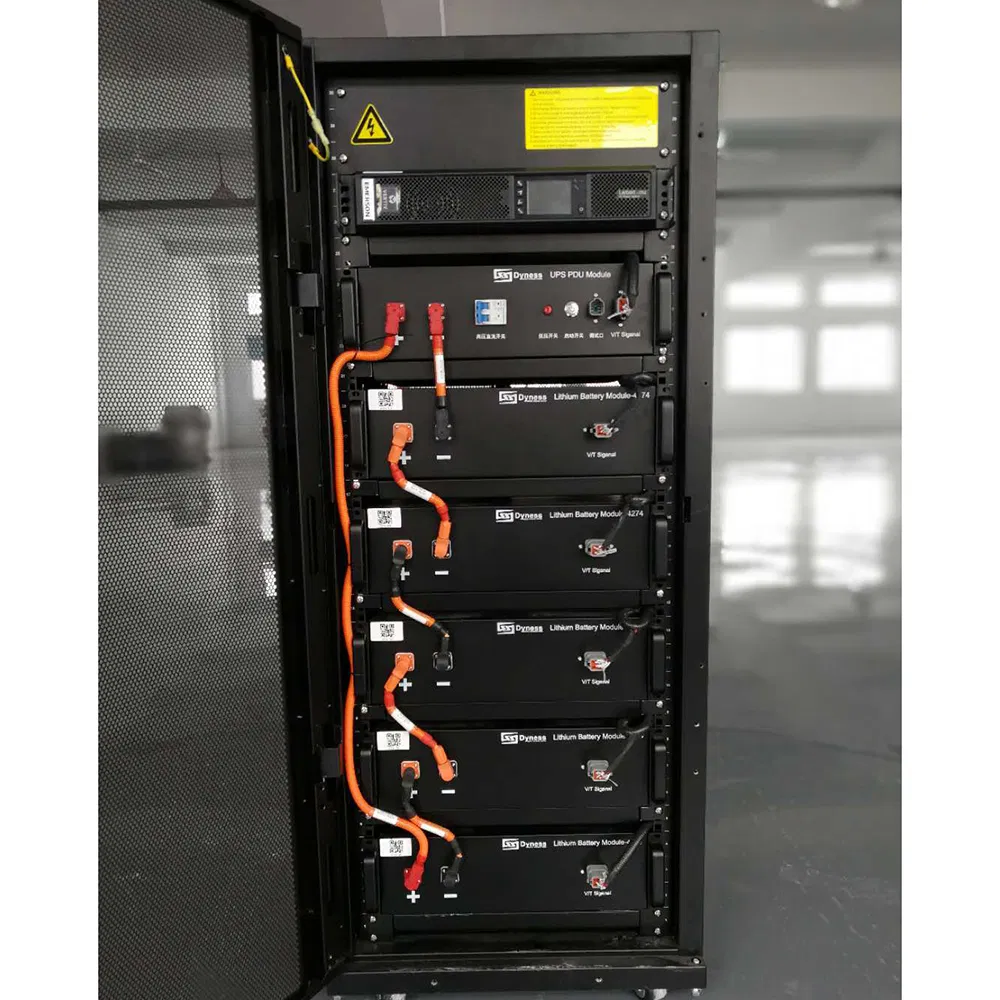

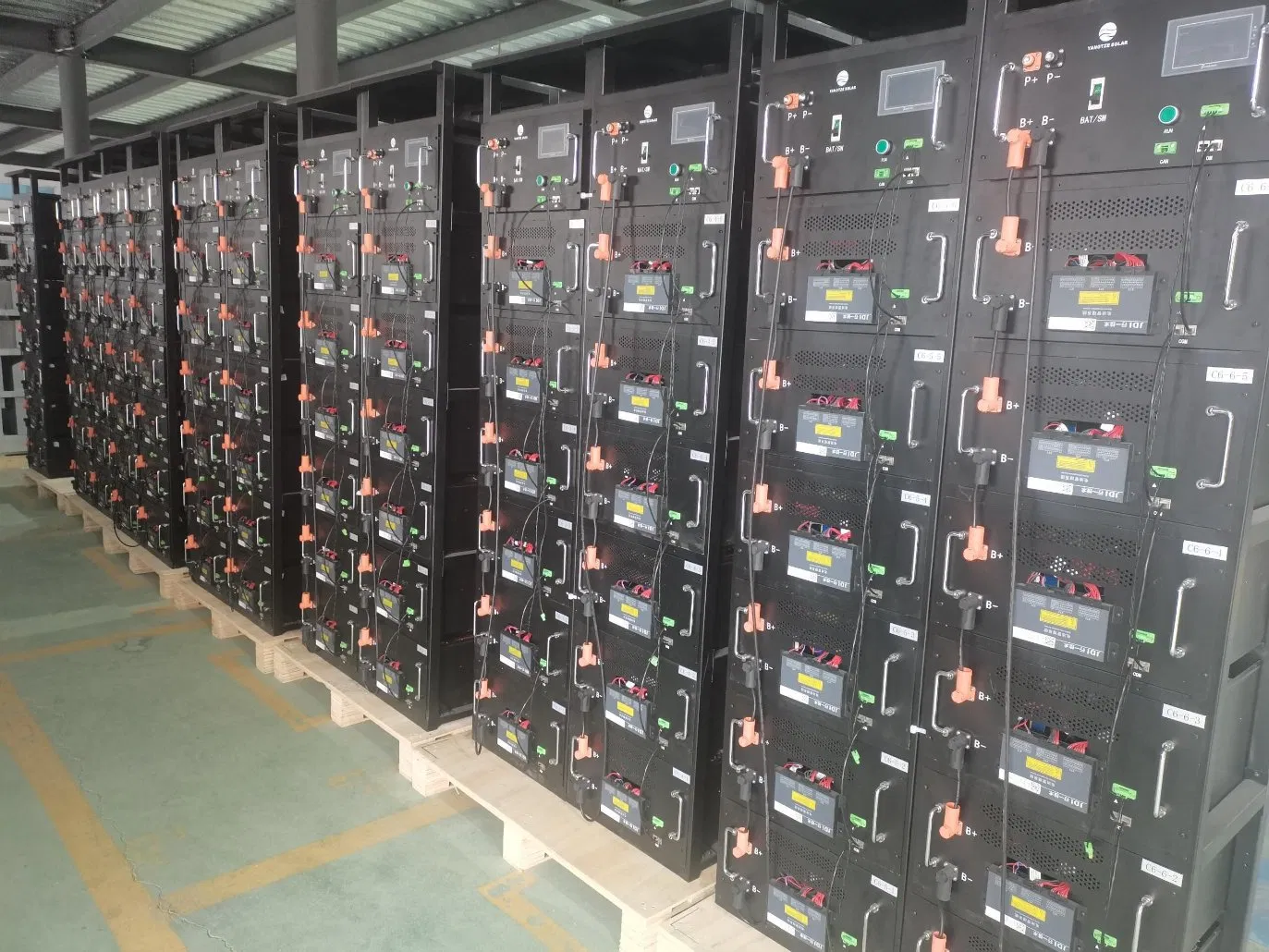

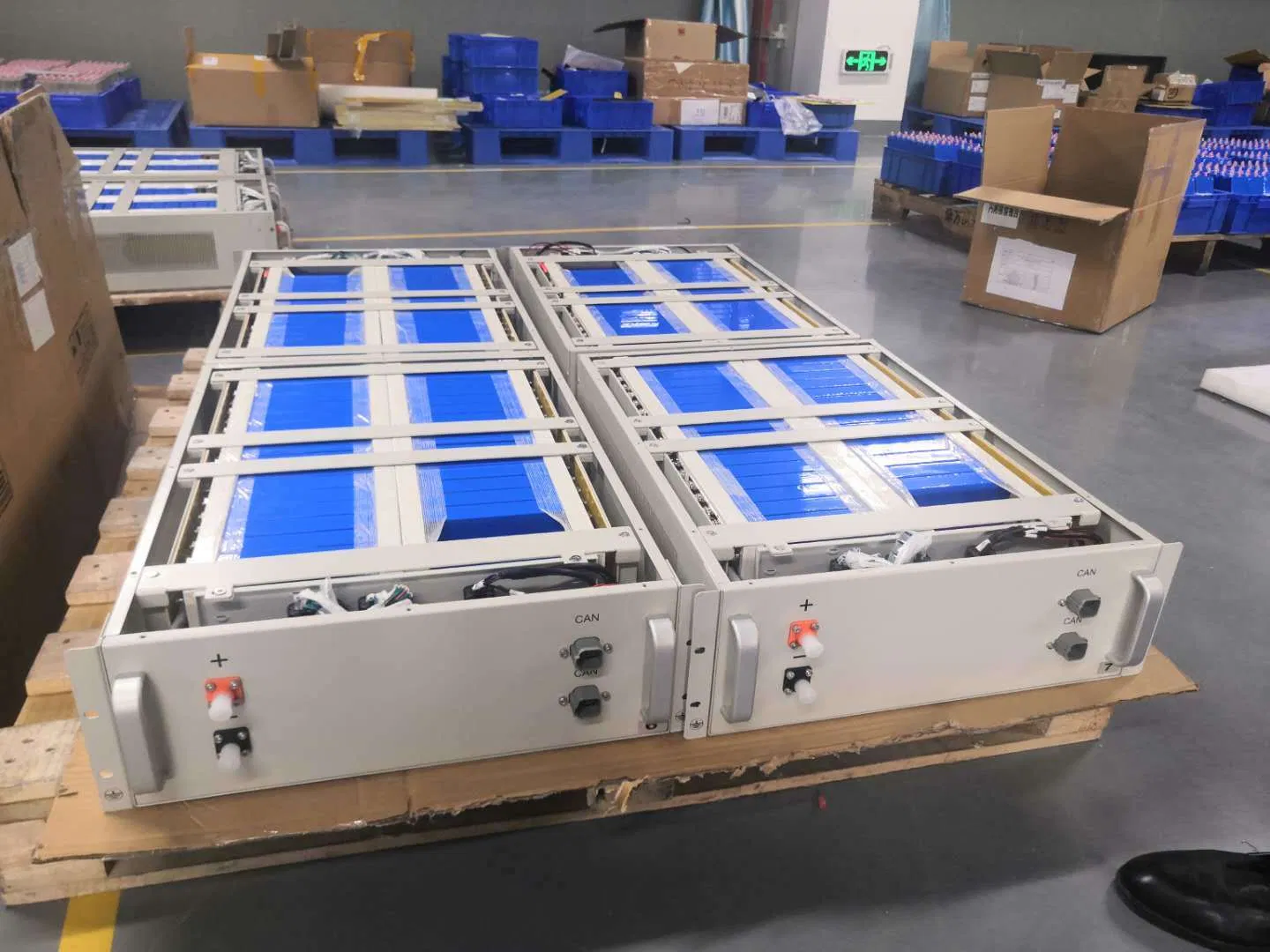

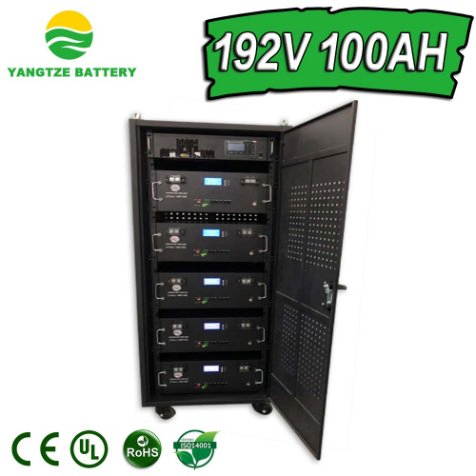

CE Certificated 20kwh Pack 192V 100ah Lithium Iron Phosphate Battery Smart BMS Lithium Ion Battery with 8000+Cycles Life for Solar System UPS Telecom EV

1 / 5

CE Certificated 20kwh Pack 192V 100ah Lithium Iron Phosphate Battery Smart BMS Lithium Ion Battery with 8000+Cycles Life for Solar System UPS Telecom EV

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

LFeLi-192100M

Nominal Voltage

192V

Discharge Rate

High Discharge Rate

Shape

Square Battery

Electrolyte

Li-ion

Installation

Packaged

Rechargeable

Chargeable

Maintenance

Free

Warranty

5 Years

Terminal

Copper

OEM Order

Acceptable

Transport Package

Wooden Box

HS Code

8506500000

Product Description

Key Features

✔Longer Cycle Life: Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery.

✔Lighter Weight: About 40% of the weight of a comparable lead acid battery. A "drop in" replacement for lead acid batteries.

✔Higher Power: Delivers twice the power of lead acid battery, even high discharge rate, while maintaining high energy capacity.

✔Wider Temperature Range: -20ºC~60ºC.

✔Superior Safety: Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact, overcharging or short circuit situation.

Technical Characteristics

Category	Parameters	Value
Electrical Characteristics	Nominal Voltage	192V
	Nominal Capacity	100Ah
	Energy	19200Wh
	Cycle Life	>3500 cycles @ 1C 80% DOD
Standard Charge	Charge Voltage	219±1V
	Charge Current	30A
	Max. Charge Current	50A
Standard Discharge	Continuous Current	100A
Standard Discharge	Discharge Cut-off Voltage	150V±1V
Environmental	Charge Temperature	0ºC to 55ºC
Environmental	Discharge Temperature	-20ºC to 60ºC

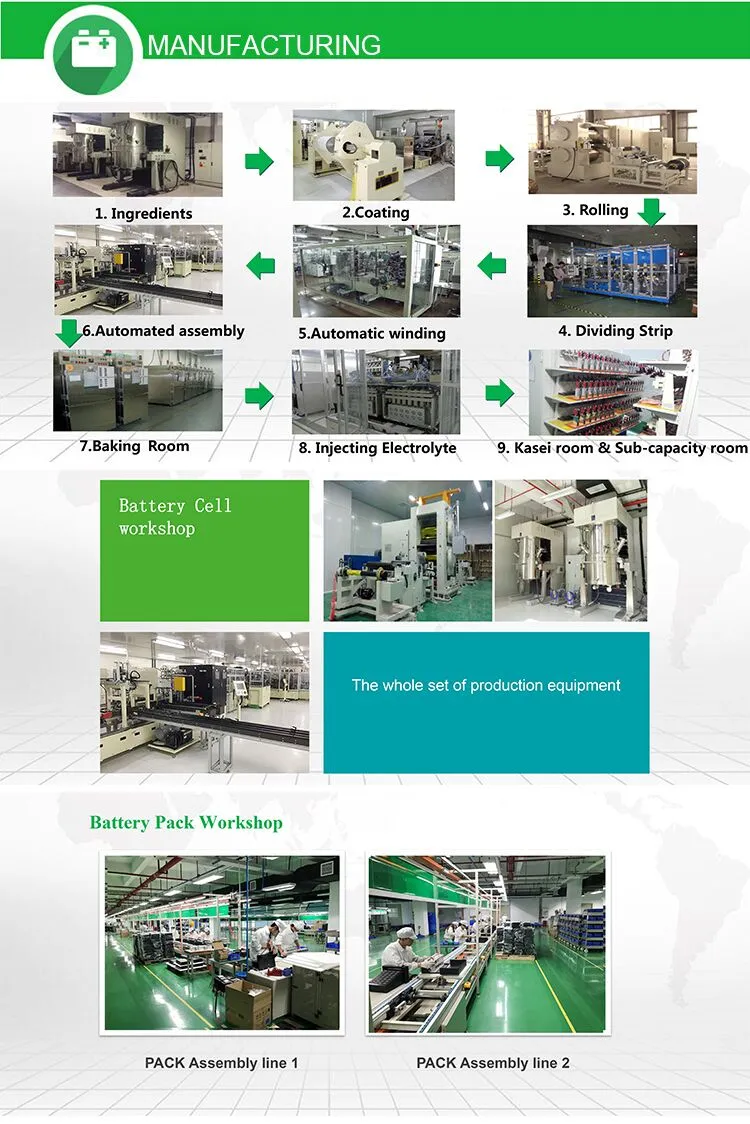

Factory & Production

♦There is a research and development team of more than 100 people, including many with advanced degrees.

♦Production includes cylindrical cells, prismatic cells, and polymer cells.

♦Products are exported to more than 150 countries.

♦Certified by TUV (Germany) and CE.

Frequently Asked Questions

What is the cycle life of the 192V 100Ah Lithium battery?

The battery offers a cycle life of over 3,500 cycles at 1C discharge rate and 80% Depth of Discharge (DOD).

Does this battery system include a BMS?

Yes, it features a Smart Battery Management System (BMS) that monitors and protects the battery from overcharging, over-discharging, and short circuits.

What is the main advantage of LiFePO4 over lead-acid batteries?

LiFePO4 batteries are approximately 40% lighter, provide twice the power, and have up to 20 times longer cycle life compared to traditional lead-acid batteries.

What are the recommended operating temperatures?

The battery can be charged between 0ºC to 55ºC and discharged in a wider range of -20ºC to 60ºC.

What kind of communication methods are supported?

The system supports CAN and RS485 communication methods for easy integration with inverters and monitoring systems.

What is the warranty period for this product?

This lithium iron phosphate battery comes with a standard 5-year warranty.
