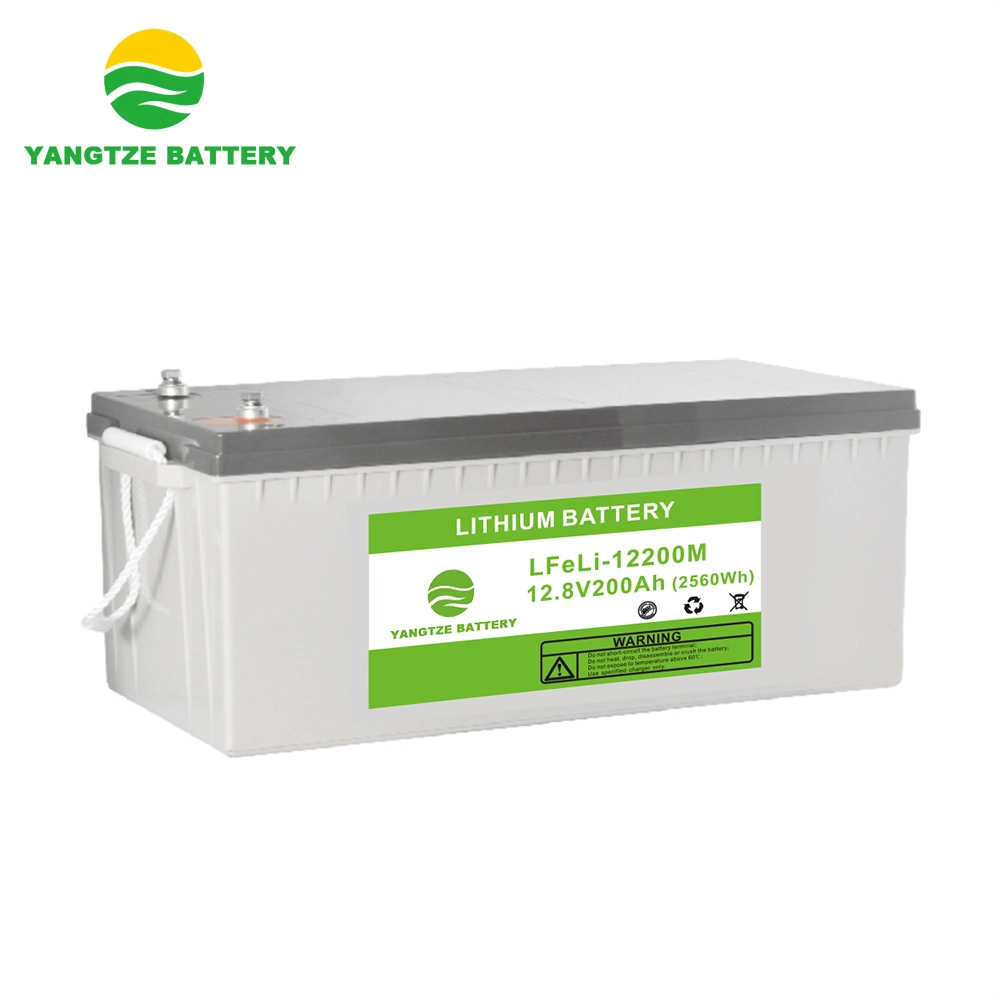

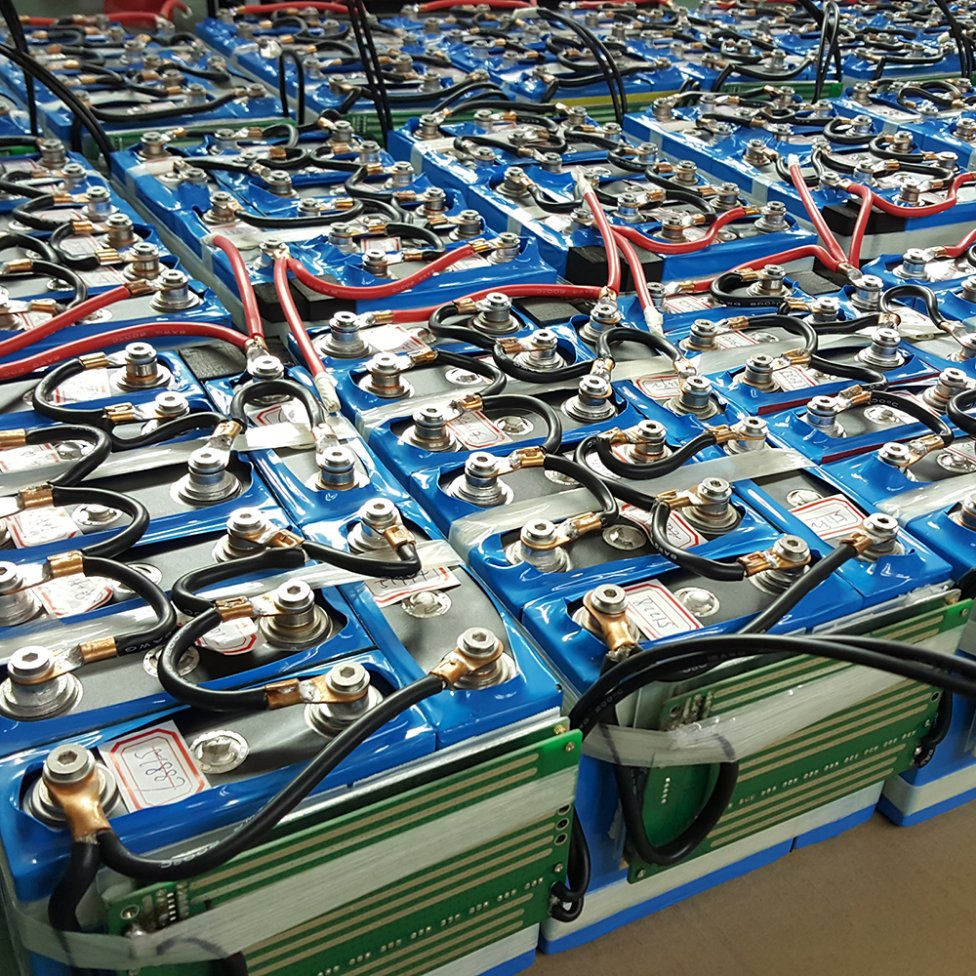

8000+ Cycles Life 5 Years Warranty Smart BMS 12V 200ah LiFePO4 Lithium Ion Battery for Solar System Inverter UPS Telecom EV Car
8000+ Cycles Life 5 Years Warranty Smart BMS 12V 200ah LiFePO4 Lithium Ion Battery for Solar System Inverter UPS Telecom EV Car
8000+ Cycles Life 5 Years Warranty Smart BMS 12V 200ah LiFePO4 Lithium Ion Battery for Solar System Inverter UPS Telecom EV Car
8000+ Cycles Life 5 Years Warranty Smart BMS 12V 200ah LiFePO4 Lithium Ion Battery for Solar System Inverter UPS Telecom EV Car
8000+ Cycles Life 5 Years Warranty Smart BMS 12V 200ah LiFePO4 Lithium Ion Battery for Solar System Inverter UPS Telecom EV Car
1 / 5
8000+ Cycles Life 5 Years Warranty Smart BMS 12V 200ah LiFePO4 Lithium Ion Battery for Solar System Inverter UPS Telecom EV Car
8000+ Cycles Life 5 Years Warranty Smart BMS 12V 200ah LiFePO4 Lithium Ion Battery for Solar System Inverter UPS Telecom EV Car
8000+ Cycles Life 5 Years Warranty Smart BMS 12V 200ah LiFePO4 Lithium Ion Battery for Solar System Inverter UPS Telecom EV Car
8000+ Cycles Life 5 Years Warranty Smart BMS 12V 200ah LiFePO4 Lithium Ion Battery for Solar System Inverter UPS Telecom EV Car
8000+ Cycles Life 5 Years Warranty Smart BMS 12V 200ah LiFePO4 Lithium Ion Battery for Solar System Inverter UPS Telecom EV Car

8000+ Cycles Life 5 Years Warranty Smart BMS 12V 200ah LiFePO4 Lithium Ion Battery for Solar System Inverter UPS Telecom EV Car

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
LFeLi-12200M
Size
Medium
Certificate
UL/CE/RoHS/ISO9001/ISO14001/IEC60896/IEC61427
Maintenance
Free
Warranty
5 Years
Terminal
Copper
OEM Order
Acceptable
Color
Grey / Black
Usage
UPS, Lighting, Electric Bicycle, Boat, Solar
Nominal Voltage
12V
Discharge Rate
High Discharge Rate
Shape
Square Battery
Electrolyte
Li-ion
Installation
Fixed
Transport Package
Carton, Pallet
Specification
12V200AH lithium Battery
Origin
China
HS Code
8507200000
Capacity
2,000,000 Pieces/Year
Product Description
Battery Banner
🔄
Longer Cycle Life Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery, helping to minimize replacement cost and reduce total cost of ownership.
⚖️
Lighter Weight About 40% of the weight of a comparable lead acid battery. A "drop in" replacement for lead acid batteries.
⚡
Higher Power Delivers twice power of lead acid battery, even high discharge rate, while maintaining high energy capacity.
🌡️
Wider Temperature Range Operational range from -20ºC to 60ºC.
🛡️
Superior Safety Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact overcharging or short circuit situation.
Applications
  • Wheelchairs & Scooters
  • Solar/Wind Energy Storage
  • UPS Back-up Power
  • Golf Trolleys
  • Electric Bikes
Technical Specifications
Nominal Voltage12.8V
Nominal Capacity200Ah
Energy2560Wh
Internal Resistance(AC)≤40mΩ
Cycle Life>2000 cycles @ 1C 100% DOD
Self Discharge<3% per month
Charge Voltage14.6±0.2V
Charge Current15A (Max 30A)
Continuous Discharge Current60A
Max. Pulse Current80A (<3s)
IP ClassIP65
Dimensions522mm * 240mm * 224mm
Weight29.60kg

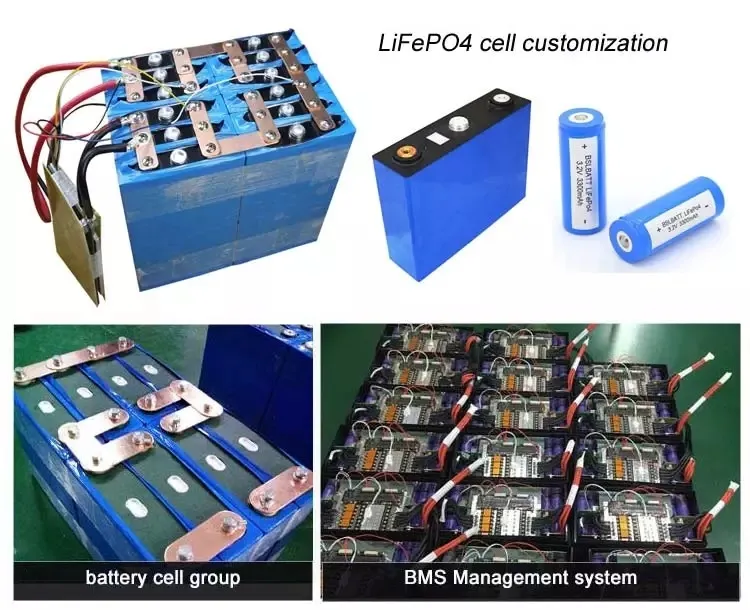

Product Gallery

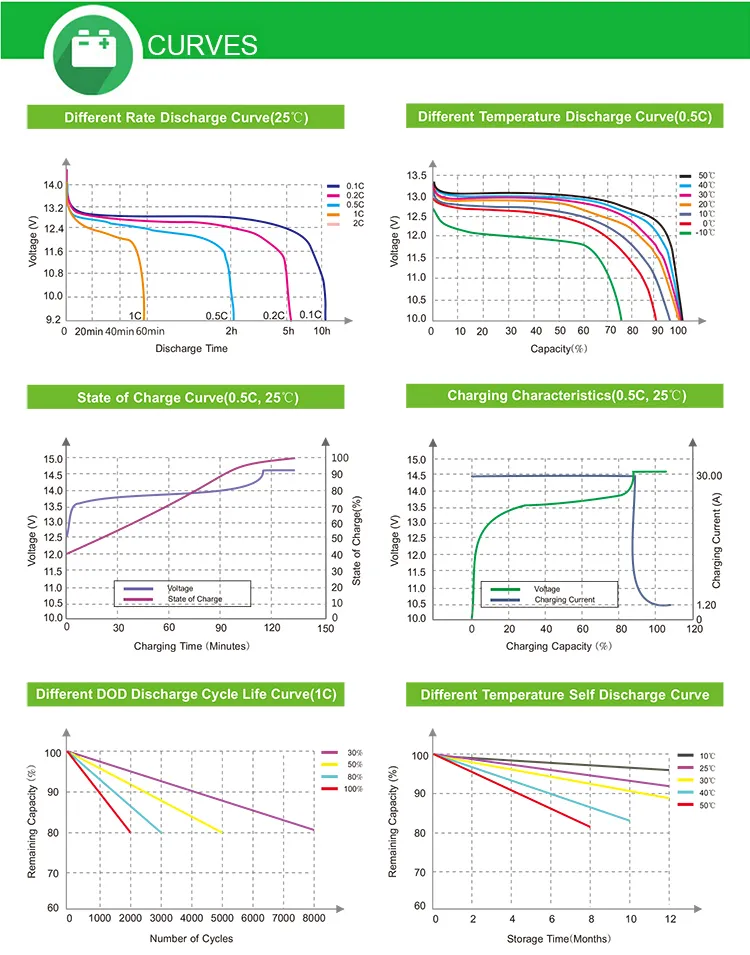

Product View 1 Product View 2 Product View 3
Product View 4 Product View 5 Product View 6

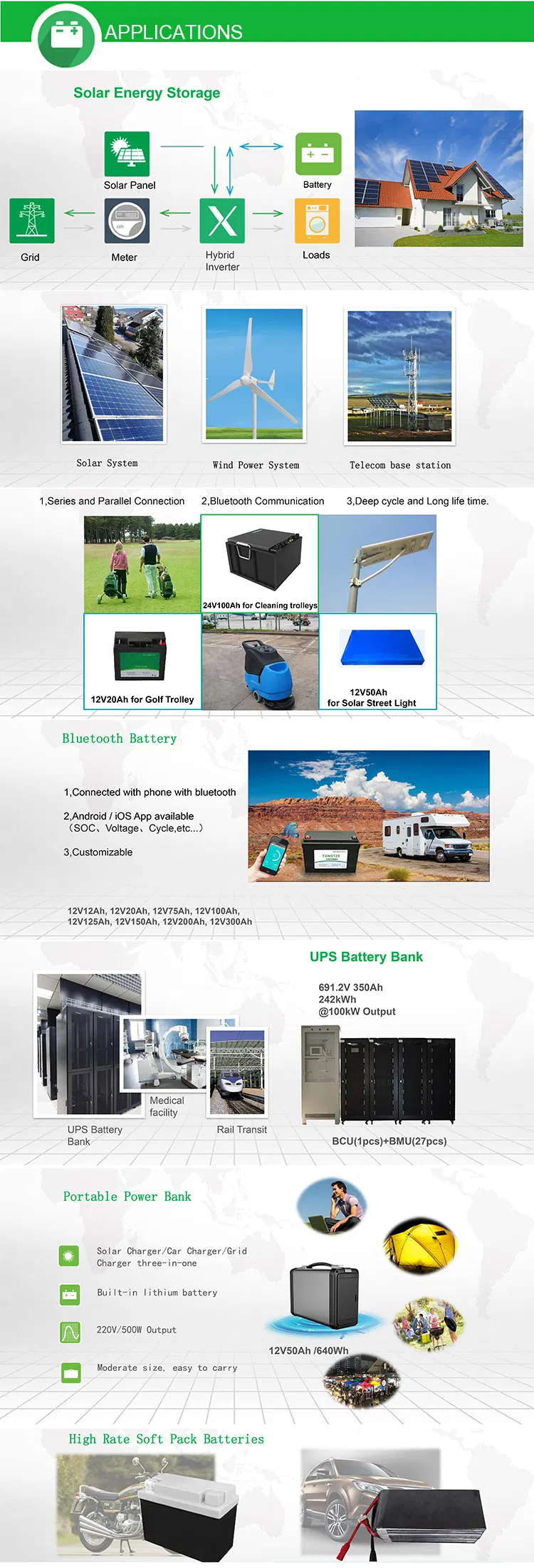

Application Infographic
Frequently Asked Questions
What is the lifespan of the 12V 200Ah LiFePO4 battery?
The battery offers an exceptional cycle life of over 2,000 cycles at 100% Depth of Discharge (DOD), which is up to 20 times longer than traditional lead-acid batteries.
How does the weight compare to lead-acid batteries?
This lithium battery is significantly lighter, weighing only about 40% of a comparable lead-acid battery, making it much easier to install and transport.
Is the battery safe for indoor use?
Yes, the Lithium Iron Phosphate (LiFePO4) chemistry is inherently safe. It eliminates the risk of explosion or combustion even under high impact, overcharging, or short circuit conditions.
What are the recommended charging parameters?
The recommended charge voltage is 14.6±0.2V with a standard charge current of 15A. It uses a CC/CV (Constant Current/Constant Voltage) charging mode for optimal performance.
Can this battery operate in extreme temperatures?
Yes, it features a wide operating temperature range. It can be discharged from -20ºC to 60ºC and charged between 0ºC and 55ºC.
What is the IP rating of the battery casing?
The battery comes in a durable ABS plastic case with an IP65 rating, providing excellent protection against dust and water ingress.
