📊 Basic Information
Cycle Life
More Than 6000 Circles
Communication
RS232/RS485/Can/Bluetooth/WiFi
Battery Type
Lithium Ion, LiFePO4
Capacity
100ah, 200ah, 314ah
Certification
IEC/CE/UL1642/UN38.3
Operating Temp
-25 to 60℃
⚙️ Technical Specifications
| 48V Battery Specifications |
| Model No |
SAS48100 |
SAS48200 |
SAS48314 |
| Capacity |
100 Ah |
200 Ah |
314 Ah |
| Energy |
4.80 kWh |
9.60 kWh |
15.07 kWh |
| Max Power |
4800 W |
9600 W |
14400 W |
| Life cycles |
6000 Cycles (80% DOD, 25°C) |
| Weight |
48 kg |
88 kg |
120 kg |

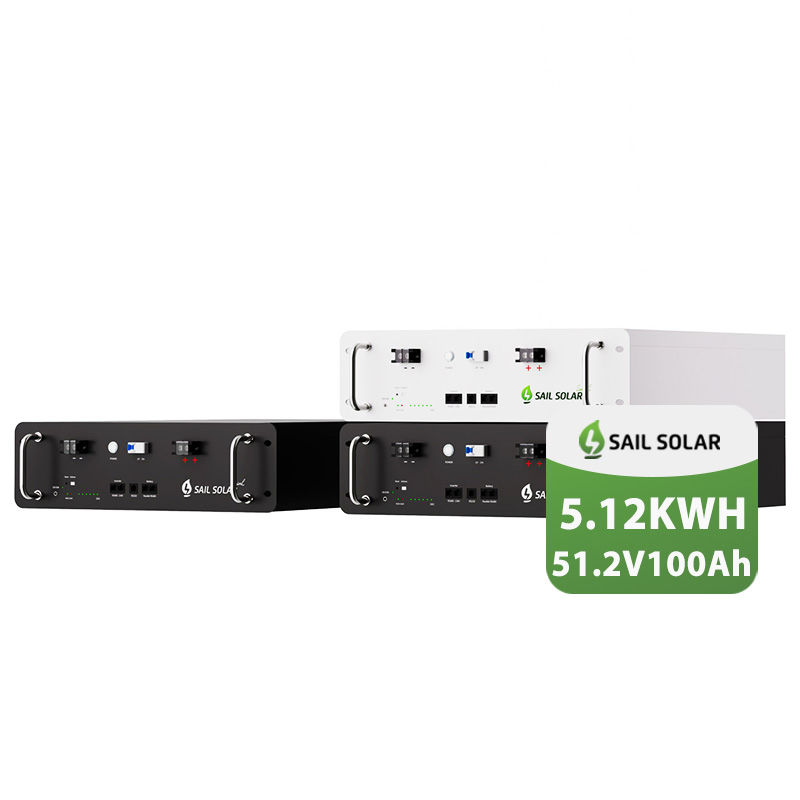

| 51.2V Battery Specifications |
| Model No |
SAS51100 |
SAS51200 |
SAS51314 |
| Capacity |
100 Ah |
200 Ah |
314 Ah |
| Energy |
5.12 kWh |
10.24 kWh |
16.07 kWh |
| Max Power |
5120 W |
10240 W |
16078 W |
| Standards |
IEC62619, UN38.3, ROHS, CE-EMC |
| Weight |
48 kg |
88 kg |
110 kg |
🌟 Key Features
✨
Attractive Design

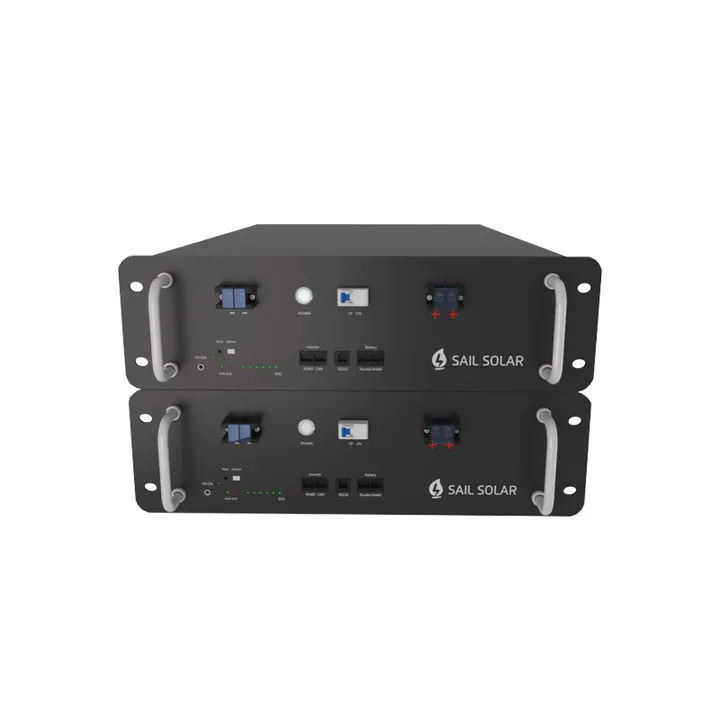

Compact design with LCD screen, convenient setting buttons, and Bluetooth monitoring via smartphones. Ready for installation with all necessary cables and accessories.
🏠
Wide Application
Widely used in residential and commercial solar systems. Features deep cycle performance with up to 90% DOD using high-quality phosphate cells.
🔋

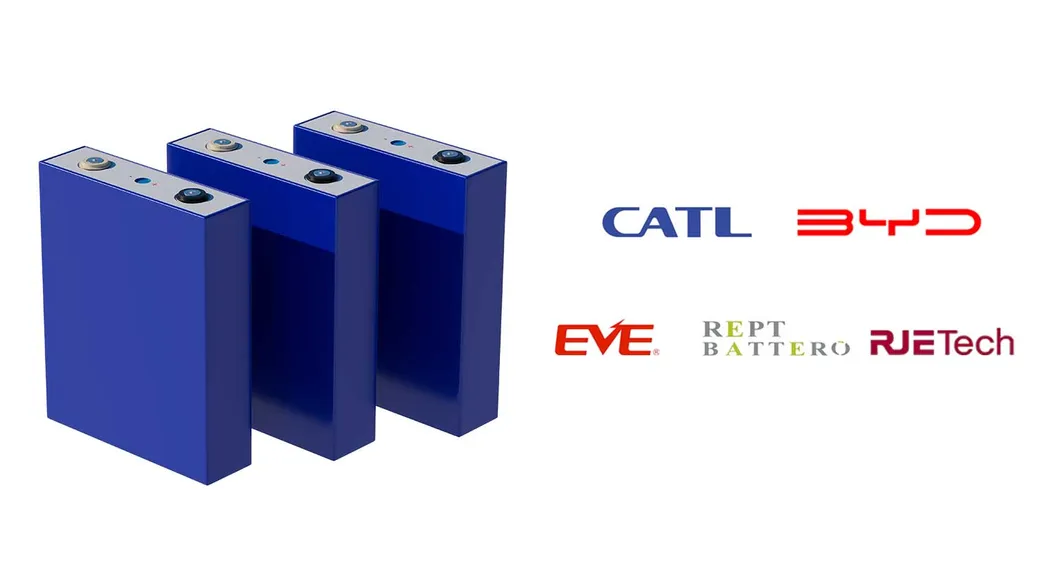

Top Raw Materials
Utilizing world-leading lithium battery cells. Key advantages include high energy density, 6000+ cycle life, and excellent performance in low temperatures.
🔄
Wide Compatibility
Our lithium battery modules are engineered to cooperate seamlessly with most mainstream inverters currently available on the market.

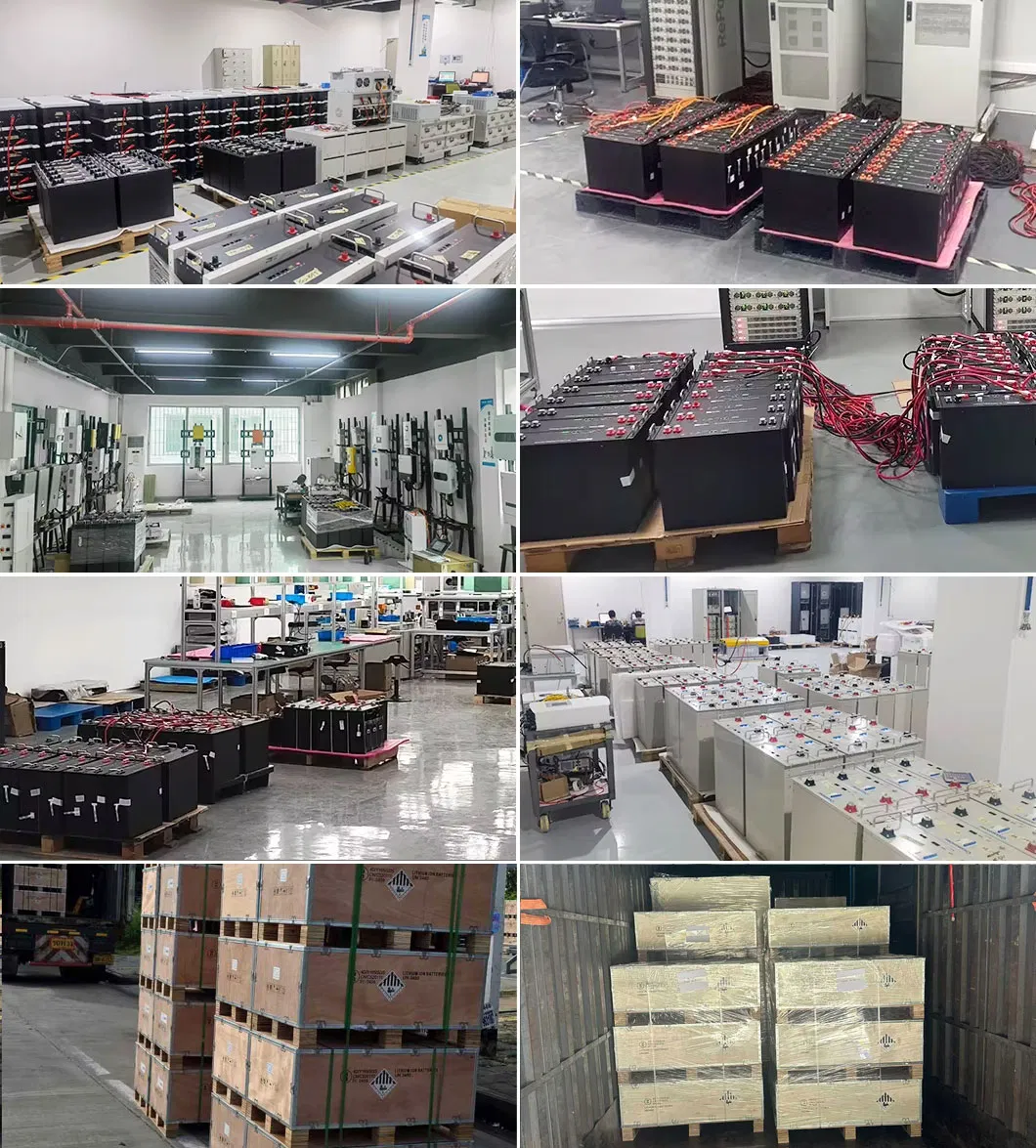

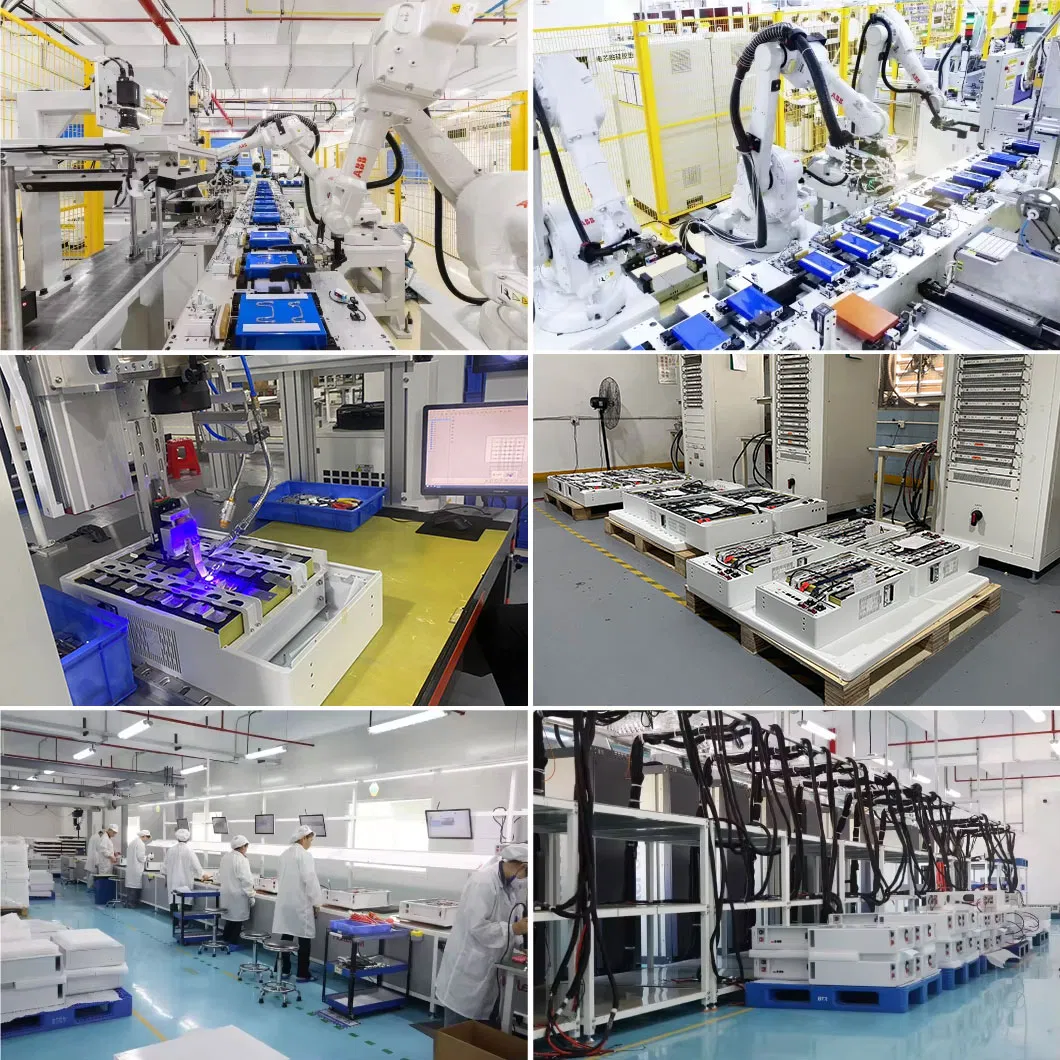

🏭 Manufacturing & Quality
Our facility features an industry-leading intelligent manufacturing system, driving innovation through a top-notch technical team. We utilize automation, AI image recognition, and predictive algorithms to ensure world-class production efficiency and quality.
📜 Certifications & Exhibitions
❓ Frequently Asked Questions
Q1: How many cycles can this battery handle?
A1: These LiFePO4 batteries are designed for more than 6000 cycles at 80% Depth of Discharge (DOD) at 25°C.
Q2: Can I monitor the battery status on my phone?
A2: Yes, the system includes Bluetooth connectivity allowing you to monitor real-time performance and battery health via a smartphone app.
Q3: Is the battery compatible with my existing solar inverter?
A3: Our batteries offer wide compatibility and can communicate via RS485/CAN with most major inverter brands on the market.
Q4: What safety protections are built into the battery?

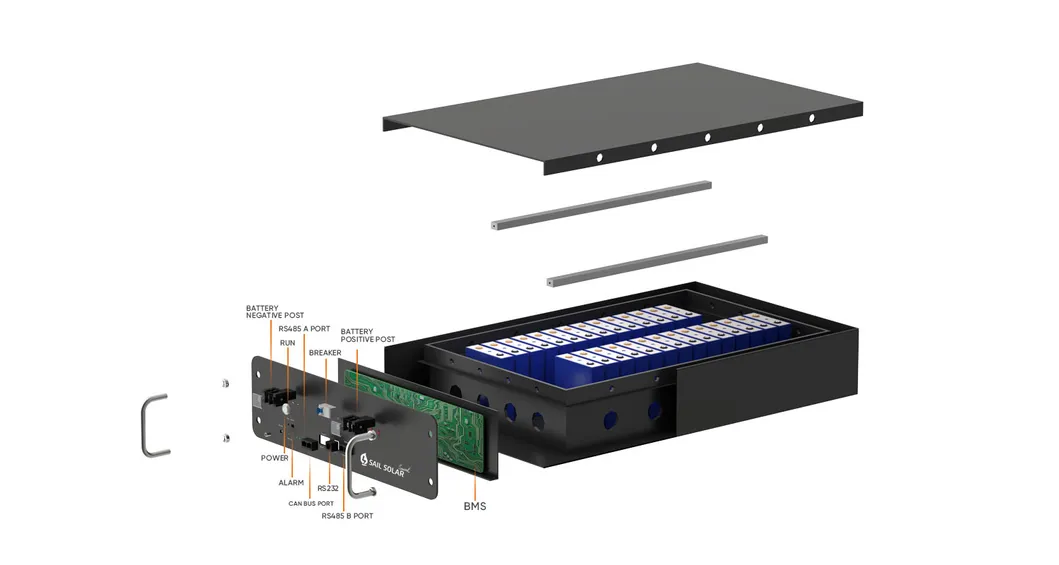

A4: Every module comes with an integrated Battery Management System (BMS) that provides protection against over-charge, over-discharge, over-current, and temperature fluctuations.
Q5: What is the expected design life of the system?
A5: The modular lithium battery system has a professional design life of 10+ years under recommended operating conditions.
Q6: Are the battery cells certified for international use?
A6: Yes, the cells used are certified under UL1642, UL1973, IEC62619, CE, and UN38.3 standards for global safety and transport compliance.
